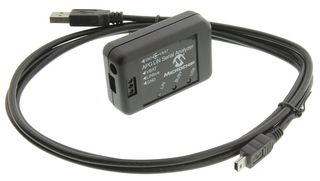

Serial Analyser Development Tool, LIN, Enables communication from PC with LIN Bus


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
APGDT001   Datasheet
See all Technical Docs

Product Overview

The APGDT001 is a local interface network serial analyser development system, which enables a personal computer to communicate with a LIN (Local Interface Network) bus as a network debug and analysis tool. The included PC program uses a graphical user interface to enter and display message frames occurring on the target bus. The user interface program runs on Microsoft Windows operating system compatible computers with a USB port. The LIN Serial Analyser connects to the PC using a mini-B USB cable. The LIN Serial Analyser interfaces to the target network using a three position, screw type terminal.
  • Powerful tool which can be used to send messages
  • Monitor the bus traffic
  • Perform errors checks and filter messages
  • Develop and debug the system implementation


LIN serial analyser, Mini-B USB cable, PC GUI installation CD ROM.


90 day warranty only. After expiration of warranty returns must be processed via Microchip.


Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
