DM330031

Development Board, dsPIC33CK256MP508, 3 Phase BLDC & PMSM Motor Controller

New

MICROCHIP DM330031

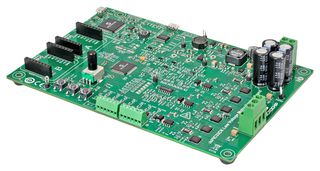

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
DM330031
Order Code:
3579862

Product Overview

  • dsPIC33CK low voltage motor control (LVMC) development board
  • Three-phase inverter bridge for 12V to 48V motors
  • Separate hall sensors and optical/magnetic encoder interfaces for sensored motor control
  • Phase voltage feedback for sensorless BEMF BLDC or PMSM operation
  • DC bus current sense shunt resistor circuit for single-shunt FOC control or BLDC current control
  • Phase current sense shunt resistor in inverter leg for dual or triple-shunt FOC control
  • Phase current signal conditioning
  • Overcurrent protection using the dsPIC33CK DSC's internal comparator and 12-bit DAC
  • DC Bus Voltage feedback for over-voltage protection
  • Temperature sensor for monitoring the MOSFET temperature

Contents

dsPIC33CK Low Voltage Motor Control (LVMC) Development Board, USB cable for connection from PC to the board, Screwdriver for motor and power connectors.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
3 Phase BLDC & PMSM Motor Controller

:
Microchip

:
Motor Control

:
dsPIC33CK256MP508

:
Development Board dsPIC33CK256MP508, USB Cable, Screwdriver

:
-
