MIDAS DISPLAYS MCOT256064C1Y-GM

Graphic OLED, 256 x 64, Green on Black, 2.75V, Parallel, SPI, 146mm x 45mm, -40 °C

MIDAS DISPLAYS MCOT256064C1Y-GM
×

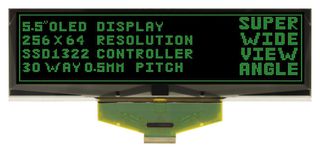

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MCOT256064C1Y-GM
Order Code:
2606860
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
MCOT256064C1Y-GM   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

  • 256x64 resolution
  • Green OLED (Organic Light Emitting Diode)
  • Green dots on a black background appearance
  • Chip On Tab (TAB) construction
  • SSD1322 controller
  • Parallel and SPI interface
  • Superb all round view angles
  • High contrast
  • Fast refresh rate
  • -40°C to +70°C extended operating temperature
  • 30 way, 0.5mm pitch, flat flexi
  • 146.0mm x 45.0mm x 2.05mm panel size
  • 137.65mm x 35.89mm viewing area
  • 0.5mm x 0.5mm dot size

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
256 x 64

:
Green on Black

:
2.75V

:
Parallel, SPI

:
146mm x 45mm

:
-40°C

:
70°C

:
TAB

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Available for back order

More stock available to supplier lead times which is approximately 19/8/24

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

Notify me when back in stock

Rs.11,992.12

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
