Print Page

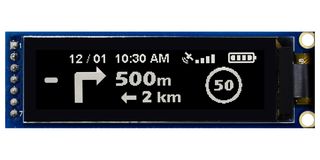

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MDOB256064D1Y-WSCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3407300 |
| Your Part Number | |
| Technical Datasheet |
19 In Stock
162 more incoming. You can reserve stock now
19 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,951.160 |
| 5+ | Rs.2,809.090 |
| 10+ | Rs.2,664.290 |
| 50+ | Rs.2,545.550 |
| 100+ | Rs.2,513.970 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,951.16
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MDOB256064D1Y-WSCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3407300 |
| Technical Datasheet | |
| Resolution | 256 x 64 Pixels |
| Display Appearance | White on Black |
| Logic Voltage | 3.3V |
| Interface Type | SPI |
| Module Size | 70mm x 22mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 80°C |
| Display Construction | COB |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Module dimension: 70.0 x 22.0 x 1.71mm
- Active area: 51.18 x 12.78mm
- Dot Matrix: 256 x 64 Dots
- Pixel Size: 0.18 x 0.18 mm
- Pixel Pitch: 0.20 x 0.20 mm
- Display Mode: Passive Matrix
- 1/64 Duty
- Grey Scale: 4 Bits
- Display Colour: White
- IC: SSD1362
- Interface: SPI
- Size: 2.08"
Technical Specifications
| Resolution | 256 x 64 Pixels |
|---|---|
| Logic Voltage | 3.3V |
| Module Size | 70mm x 22mm |
| Operating Temperature Max | 80°C |
| Product Range | - |
| Display Appearance | White on Black |
|---|---|
| Interface Type | SPI |
| Operating Temperature Min | -40°C |
| Display Construction | COB |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .07 |
