105307-1202

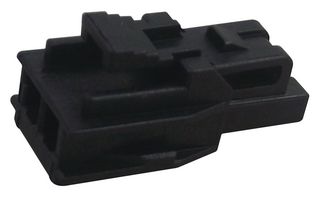

Connector Housing, TPA Capable, Nano-Fit 105307, Receptacle, 2 Ways, 2.5 mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No105307-1202Copy
Manufacturer Standard Lead Time11 weeks
Order Code2576852
Product RangeNano-Fit 105307 Series
Also Known As1053071202, 105307-1202
Your Part Number
53,263 In Stock
Need more?
924 Delivery in 3-5 Business Days(SG stock)
52,339 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.30.190 |
| 100+ | Rs.25.430 |
| 500+ | Rs.25.140 |
| 1000+ | Rs.24.840 |
| 2000+ | Rs.24.550 |
| 3000+ | Rs.24.250 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.301.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No105307-1202Copy
Manufacturer Standard Lead Time11 weeks
Order Code2576852
Product RangeNano-Fit 105307 Series
Also Known As1053071202, 105307-1202
Technical Datasheet
Product RangeNano-Fit 105307 Series
No. of Positions2Ways
Pitch Spacing2.5mm
SVHCNo SVHC (04-Feb-2026)
Product Overview
Nano-Fit power connectors provide fully protected header terminals in a small package for design engineers. They offer multiple mechanical keying options to ensure proper mating and terminal position assurance (TPA) to reduce terminal back-out.
- Ultra-low mate force terminal
- Positive-lock housing with anti-snag design
- Terminal interface with four points of contact
- SMT version enables use of multi-layer boards by eliminating the need for through holes
- SMT headers provide short electrical paths
- Ultra-low mate force terminal
Applications
Automotive, Consumer Electronics, Industrial, Medical, Communications & Networking, Communications & Networking
Technical Specifications
Product Range
Nano-Fit 105307 Series
No. of Positions
2Ways
For Use With
Molex Nano-Fit 105300 Series Female Crimp Terminals
Gender
Receptacle
Pitch Spacing
2.5mm
SVHC
No SVHC (04-Feb-2026)
Associated Products
7 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00031
