146187-0150

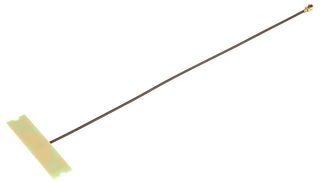

Antenna, PCB, 5.15GHz to 5.85GHz, Linear, Screw
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No146187-0150
Order Code3862524
Product Range146187 Series
Technical Datasheet
1,697 In Stock
Need more?
1697 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.318.780 |
| 10+ | Rs.246.580 |
| 25+ | Rs.173.270 |
| 50+ | Rs.155.500 |
| 100+ | Rs.140.690 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.318.78
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No146187-0150
Order Code3862524
Product Range146187 Series
Technical Datasheet
Antenna TypePCB
Frequency Min5.15GHz
Frequency Max5.85GHz
Antenna MountingScrew
Gain4.2dBi
VSWR-
Input Power2W
Input Impedance50ohm
Antenna PolarisationLinear
Product Range146187 Series
SVHC2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (07-Nov-2024)
Product Overview
- Polarisation Linear
- Radiation Pattern Omnidirectional
- Mounting Style Screw-Nut
- Frequency: 2400MHz to 2483.5MHz (Band 1), 5150MHz to 5850MHz (Band 2)
- Peak Gain: 3dBi @ 2.4GHz, 4.2dBi @ 5 GHz
- Cable Length 150mm
- Dimensions: 40.95x9x0.7mm
Technical Specifications
Antenna Type
PCB
Frequency Max
5.85GHz
Gain
4.2dBi
Input Power
2W
Antenna Polarisation
Linear
SVHC
2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (07-Nov-2024)
Frequency Min
5.15GHz
Antenna Mounting
Screw
VSWR
-
Input Impedance
50ohm
Product Range
146187 Series
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85172190
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
