Connector Housing, 16 Way, Mini-Fit TPA2 30072, Receptacle, 16 Ways, 4.2 mm

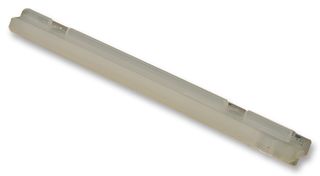

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No15-97-9161..
Order Code1512809
Product RangeMini-Fit TPA2 30072
Also Known As30072-16, GTIN UPC EAN: 800754203128
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMOLEX
Manufacturer Part No15-97-9161..
Order Code1512809
Product RangeMini-Fit TPA2 30072
Also Known As30072-16, GTIN UPC EAN: 800754203128
Technical Datasheet
Product RangeMini-Fit TPA2 30072
No. of Positions16Ways
Pitch Spacing4.2mm
For Use WithMolex Mini-Fit 30067 Series Contacts
SVHCNo SVHC (15-Jan-2018)
Product Overview
Mini-Fit Terminal Position Assurance (TPA) Plugs and Receptacles are ideal for high-current applications requiring a redundant terminal retention feature. Mini-Fit TPA plugs and receptacles utilize a highly visible "TPA pin" that indicates when a terminal is fully seated in the housing and ensures that the terminal will not back out of the housing during mating or when in use. Mini-Fit TPA products are available in wire to wire and wire to board configurations.
- Supports up to 13A current
- Vertical or right angle headers with mounting pegs/screw-mount flanges
- Connector position assurance (CPA) key prevents accidental unmating
- Accepts standard Mini-Fit crimp terminals
- Polarized housings with isolated terminals
- Positive locks and low-engagement forces
Applications
Automotive, Commercial Vehicle, Consumer Electronics, Communications & Networking, Medical
Technical Specifications
Product Range
Mini-Fit TPA2 30072
No. of Positions
16Ways
For Use With
Molex Mini-Fit 30067 Series Contacts
Gender
Receptacle
Pitch Spacing
4.2mm
SVHC
No SVHC (15-Jan-2018)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
