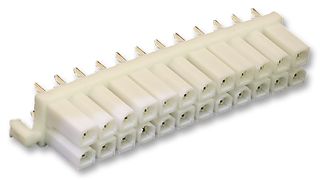

PCB Receptacle, Board-to-Board, Wire-to-Board, 4.2 mm, 2 Rows, 24 Contacts, Female Receptacle
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No15247241Copy
Order Code1513586
Also Known As15-24-7241, GTIN UPC EAN: 800754209731
Your Part Number
No Longer Stocked
Product Information
ManufacturerMOLEX
Manufacturer Part No15247241Copy
Order Code1513586
Also Known As15-24-7241, GTIN UPC EAN: 800754209731
Technical Datasheet
Connector TypeFemale Receptacle
Connector MountingThrough Hole Mount
Contact MaterialBrass
Connector Body MaterialNylon (Polyamide) Body
Connector OrientationStraight
Contact Current Rating9A
Contact Termination TypeSolder
Alternatives for 15247241
1 Product Found
Product Overview
Mini-Fit Blind Mate Interface (BMI) Power Connectors are designed for high current / high density applications. Mini-Fit BMI connectors allow misalignment and provide up to 2.54mm of float between mating surfaces for easy blind-mate connections. Mini-Fit panel-mount receptacles are designed to float or self-align. The headers and plugs feature flanges that help to gather the mating receptacle.
- Supports up to 13A current
- Supports WTW, WTB and BTB configurations
- Integrates Mini-Fit Jr. and Mini-Fit Plus terminal system
- Polarized housings with isolated terminals
- Positive locks and low-engagement forces
Applications
Automotive, Commercial Vehicle, Consumer Electronics, Communications & Networking, Medical
Technical Specifications
Connector Type
Female Receptacle
Contact Material
Brass
Connector Orientation
Straight
Contact Termination Type
Solder
Connector Mounting
Through Hole Mount
Connector Body Material
Nylon (Polyamide) Body
Contact Current Rating
9A
Technical Docs (4)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85369090
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005434
