22-01-2147

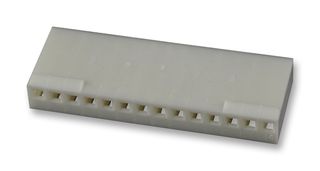

Connector Housing, KK 254 2695, Receptacle, 14 Ways, 2.54 mm

MOLEX 22-01-2147
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
22-01-2147
Order Code:
2396377
Product Range
KK 254 2695
Also Known As:
2695-14R, GTIN UPC EAN: 800753690011
Technical Datasheet:
22-01-2147   Datasheet
See all Technical Docs

Product Range Selector (KK 254 2695)

See all from this product range

Product Overview

The KK series Connector System can be designed into a variety of power and signal applications. Available in industry-standard 2.54 and 3.96mm pitch sizes, this single-row, wire-to-board and board-to-board product family is versatile. The KK RPC (Reflow Process Compatible) headers are available in both signal and power families and can handle solder temperatures up to 260°C. Additionally, customizable KK headers allow for more polarization options and design configurations, which makes the KK connector system ideal for a variety of industries.
  • 22, 24, 26, 28 and 30AWG applicable wire sizes

Applications

Automotive, Communications & Networking, Consumer Electronics, Medical, Lighting, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
KK 254 2695

:
Receptacle (View Associated Connectors)

:
14Ways

:
2.54mm

:
2759, 6459, 41572, 4809, 8088 Crimp Terminals

Find similar products Choose and modify the attributes above to find similar products.
