42816-0212

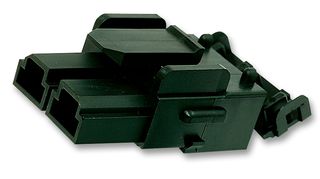

Connector Housing, Black, Mini-Fit Sr. 42816 Series, Receptacle, 2 Ways, 10 mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No42816-0212Copy
Manufacturer Standard Lead Time6 weeks
Order Code3075783
Product RangeMini-Fit Sr. 42816 Series
Also Known As428160212, 42816-0212
Your Part Number
37,631 In Stock
Need more?
2,711 Delivery in 3-5 Business Days(SG stock)
34,920 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.104.990 |
| 100+ | Rs.94.330 |
| 500+ | Rs.92.720 |
| 1000+ | Rs.91.110 |
| 2000+ | Rs.90.150 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.104.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No42816-0212Copy
Manufacturer Standard Lead Time6 weeks
Order Code3075783
Product RangeMini-Fit Sr. 42816 Series
Also Known As428160212, 42816-0212
Technical Datasheet
Product RangeMini-Fit Sr. 42816 Series
No. of Positions2Ways
Pitch Spacing10mm
SVHCLead chromate molybdate sulphate red (C.I. Pigment Red 104) (04-Feb-2026)
Product Overview
42816-0212 is a 42816 series, single row, 2 circuit, 10mm pitch Mini-Fit Sr. receptacle housing. It mates with 42818 10.00mm Pitch Mini-Fit Sr. single row plug housings, 42819 Mini-Fit Sr. vertical single row headers, 42820 Mini-Fit Sr. right-angle single row headers. It is used with 42815 Mini-Fit Sr. female crimp terminals.
- CSA LR19980, UL E29179 approved
- 94V-0 flammability
- Black polyester resin
- Lock to mating part and polarized to mating part
- Operating temperature range from -40°C to +105°C
- Power, wire-to-board, wire-to-wire application
Technical Specifications
Product Range
Mini-Fit Sr. 42816 Series
No. of Positions
2Ways
For Use With
Molex Mini-Fit Sr. 42815 Series Female Crimp Terminals
Gender
Receptacle
Pitch Spacing
10mm
SVHC
Lead chromate molybdate sulphate red (C.I. Pigment Red 104) (04-Feb-2026)
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead chromate molybdate sulphate red (C.I. Pigment Red 104) (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004929
