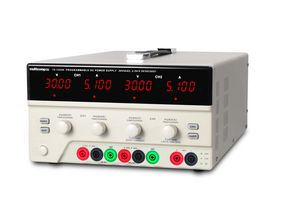

Bench Power Supply, Programmable, 3 Output, 0 V, 30 V, 0 A, 5 A
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 72-13330Copy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 2848411 |
| Your Part Number | |
| Technical Datasheet |
100 In Stock
100 more incoming. You can reserve stock now
100 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.29,373.680 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.29,373.68
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 72-13330Copy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 2848411 |
| Technical Datasheet | |
| Power Supply Output Type | Programmable |
| No. of Outputs | 3 Output |
| Output Voltage Min | 0V |
| Output Voltage Max | 30V |
| Output Current Min | 0A |
| Output Current Max | 5A |
| Power Rating | 315W |
| Supply Voltage Min | - |
| Supply Voltage Max | 230V |
| Manufacturer Warranty | 1 Year |
| Product Range | - |
| Plug Type | EU, UK |
| SVHC | To Be Advised |
Product Overview
72-13330 is a triple-channel DC power supply with USB, RS232 and LAN interfaces.
- Compact design, safe, simple and convenient operation
- 3 channel output (Ch1 and Ch2 (2x, 0 - 30V) and Ch3 (1x, adjustable 2.5V/3.3V/5V))
- 10mV/1mA high accuracy resolution DC power supply
- Shutdown memory, complete programmable control
- Dimension (W×H×D) is 146mm×252mm×375mm
- Industrial grade with load for a long time
- Intelligent temperature controlled fan
- Overcurrent protection and output ON/OFF control
- Knob lock function to avoid improper operation
- 12-month limited warranty *view Terms & Conditions for details
Contents
DC power supply, User manual, Power cord (1.2m, 1x UK plug & 1x EURO plug), USB cord (1.2m), Software CD.
Notes
Not suitable for charging batteries. In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| Power Supply Output Type | Programmable |
|---|---|
| Output Voltage Min | 0V |
| Output Current Min | 0A |
| Power Rating | 315W |
| Supply Voltage Max | 230V |
| Product Range | - |
| SVHC | To Be Advised |
| No. of Outputs | 3 Output |
|---|---|
| Output Voltage Max | 30V |
| Output Current Max | 5A |
| Supply Voltage Min | - |
| Manufacturer Warranty | 1 Year |
| Plug Type | EU, UK |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85043200 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 10.38 |
