MC33189
Resettable Fuse, PPTC, 2920 (7351 Metric), MP FSMD, 60 VDC, 300 mA, 600 mA, 3 s

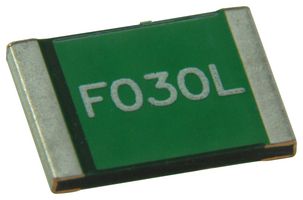

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC33189Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | Re-Reel1800748RL Cut Tape1800748 |
| Product Range | MP FSMD |
| Your Part Number | |
| Technical Datasheet |
1,618 In Stock
Need more?
1,618 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 5 | Rs.27.630 | Rs.138.15 |
| Total Price | Rs.138.15 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 5+ | Rs.27.630 |
| 50+ | Rs.21.260 |
| 250+ | Rs.17.450 |
| 500+ | Rs.16.050 |
| 1000+ | Rs.14.390 |
| 2000+ | Rs.13.180 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC33189Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | Re-Reel1800748RL Cut Tape1800748 |
| Product Range | MP FSMD |
| Technical Datasheet | |
| PPTC Case Style | 2920 (7351 Metric) |
| Product Range | MP FSMD |
| Voltage Rating | 60VDC |
| Holding Current | 300mA |
| Trip Current | 600mA |
| Time to Trip | 3s |
| Current Rating Max | 100A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
MC33189 is a 2920‑case SMD PPTC resettable fuse rated for 60V DC. It supports a holding current of 300mA and trips at 600mA within approximately 3seconds, automatically resetting upon fault clearance. This compact device provides reliable, low-current protection in telecom, power-supply, and industrial electronics.
- UL approved
- Auto‑resetting after overcurrent, no fuse replacement needed
- 300mA hold / 600mA trip (~3s), precision protection for sensitive circuits
- Withstands surge currents up to 100A, guards against inrush events
- Compact 2920 SMD case (≈8×5mm), fits high-density PCB layouts
- –40°C to +85°C operating range, suitable for diverse environments
Technical Specifications
| PPTC Case Style | 2920 (7351 Metric) |
|---|---|
| Voltage Rating | 60VDC |
| Trip Current | 600mA |
| Current Rating Max | 100A |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (21-Jan-2025) |
| Product Range | MP FSMD |
|---|---|
| Holding Current | 300mA |
| Time to Trip | 3s |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
Technical Docs (1)
Alternatives for MC33189
8 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000178 |
