MC36195

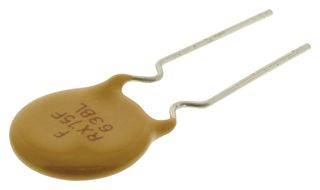

Resettable Fuse, PPTC, MP FRX, 60 VDC, 750 mA, 1.5 A, 6.3 s, Round
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC36195Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1861129 |
| Product Range | MP FRX |
| Your Part Number | |
| Technical Datasheet |
1,565 In Stock
Need more?
989 Delivery in 4-6 Business Days(UK stock)
576 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.22.010 |
| 50+ | Rs.17.170 |
| 100+ | Rs.14.370 |
| 250+ | Rs.13.180 |
| 500+ | Rs.12.010 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.220.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC36195Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1861129 |
| Product Range | MP FRX |
| Technical Datasheet | |
| Product Range | MP FRX |
| Voltage Rating | 60VDC |
| Holding Current | 750mA |
| Trip Current | 1.5A |
| Time to Trip | 6.3s |
| Fuse Shape | Round |
| Current Rating Max | 40A |
| Lead Spacing | 5.1mm |
| Diameter | 10.4mm |
| Length | - |
| Thickness | 3.1mm |
| Height | 15.2mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | To Be Advised |
Product Overview
MC36195 is a radial-leaded PPTC resettable fuse rated for 60V DC. It holds 750mA under normal operation and trips at 1.5A within approximately 6.3 seconds, then reset automatically, delivering compact and maintenance-free overcurrent protection for telecom, industrial, and electronics applications.
- UL approved
- Auto-resettable for uninterrupted circuit protection
- 750mA hold / 1.5A trip (~6.3s) response time
- Handles surge currents up to 40A for robust inrush defence
- Compact radial form (Ø10.4 × 15.2 × 3.1mm, 5.1mm lead spacing)
- Operates from –40°C to +85°C for broad environmental use
Technical Specifications
| Product Range | MP FRX |
|---|---|
| Holding Current | 750mA |
| Time to Trip | 6.3s |
| Current Rating Max | 40A |
| Diameter | 10.4mm |
| Thickness | 3.1mm |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| Voltage Rating | 60VDC |
|---|---|
| Trip Current | 1.5A |
| Fuse Shape | Round |
| Lead Spacing | 5.1mm |
| Length | - |
| Height | 15.2mm |
| Operating Temperature Max | 85°C |
| SVHC | To Be Advised |
Technical Docs (1)
Alternatives for MC36195
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000346 |
