MC36196
Resettable Fuse, PPTC, MP FRX, 60 VDC, 900 mA, 1.8 A, 7.2 s, Round

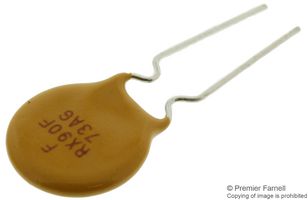

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC36196Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1861131 |
| Product Range | MP FRX |
| Your Part Number | |
| Technical Datasheet |
7,919 In Stock
Need more?
7,900 Delivery in 4-6 Business Days(UK stock)
19 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.21.880 |
| 50+ | Rs.17.040 |
| 100+ | Rs.14.240 |
| 250+ | Rs.13.070 |
| 500+ | Rs.11.910 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.218.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MC36196Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1861131 |
| Product Range | MP FRX |
| Technical Datasheet | |
| Product Range | MP FRX |
| Voltage Rating | 60VDC |
| Holding Current | 900mA |
| Trip Current | 1.8A |
| Time to Trip | 7.2s |
| Fuse Shape | Round |
| Current Rating Max | 40A |
| Lead Spacing | 5.1mm |
| Diameter | 11.7mm |
| Length | - |
| Thickness | 3.1mm |
| Height | 15.8mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | To Be Advised |
Product Overview
MC36196 is a round, radial-leaded PPTC resettable fuse rated for 60V DC. It holds 900mA under normal operation and trips at 1.8A within approximately 7.2 seconds, then automatically resets once the fault clears, making it ideal for durable, low-maintenance overcurrent protection in telecom, industrial, and power supply circuits.
- UL approved
- Auto-resettable protection, restores safely after faults
- 900mA hold / 1.8A trip in ~7.2s, balances circuit continuity with robust fault response
- Handles surge currents up to 40A, protects against inrush events
- Compact radial round form (Ø 11.7 × 15.8 × 3.1mm), fits densely packed PCBs
- Operates from –40°C to +85°C, suitable across diverse environments
Technical Specifications
| Product Range | MP FRX |
|---|---|
| Holding Current | 900mA |
| Time to Trip | 7.2s |
| Current Rating Max | 40A |
| Diameter | 11.7mm |
| Thickness | 3.1mm |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| Voltage Rating | 60VDC |
|---|---|
| Trip Current | 1.8A |
| Fuse Shape | Round |
| Lead Spacing | 5.1mm |
| Length | - |
| Height | 15.8mm |
| Operating Temperature Max | 85°C |
| SVHC | To Be Advised |
Technical Docs (1)
Alternatives for MC36196
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000363 |
