MP011403
AC/DC Power Supply, ITE, 1 Output, 10 W, 5 VDC, 2.1 A

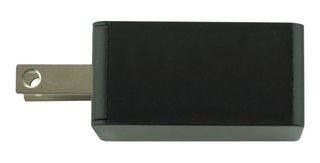

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP011403Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4158604 |
| Product Range | MP USB Mains Chargers |
| Your Part Number | |
| Technical Datasheet |
55 In Stock
Need more?
55 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.822.230 |
| 10+ | Rs.753.500 |
| 25+ | Rs.705.140 |
| 50+ | Rs.641.500 |
| 100+ | Rs.604.580 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.822.23
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP011403Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4158604 |
| Product Range | MP USB Mains Chargers |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 10W |
| Output Voltage - Output 1 | 5VDC |
| Output Current - Output 1 | 2.1A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | USB A |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | MP USB Mains Chargers |
| Plug Type | US |
| SVHC | To Be Advised |
Product Overview
- 10W US wall plug USB adapter
- USA plug top, DOE level VI efficiency
- Overcurrent protection, short circuit protection
- 1 year warranty, UL62368 approved
- 5VDC output DC voltage, 2.1A output rated current
- USB A socket output connector
- Input voltage range from 90VAC to 264VAC
- 0°C to 40°C operating temperature, convection cooling
- 200m Vp-p max ripple noise
- <lt/>0.1W maximum energy consumption
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 10W |
| Output Current - Output 1 | 2.1A |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Power Supply Output Type | Fixed |
| Product Range | MP USB Mains Chargers |
| SVHC | To Be Advised |
| No. of Outputs | 1 Output |
|---|---|
| Output Voltage - Output 1 | 5VDC |
| Output Voltage - Output 2 | - |
| Output Connector | USB A |
| Output Current - Output 3 | - |
| Input Voltage VAC | 90V AC to 264V AC |
| Plug Type | US |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001361 |
