MP011851
Fuse, Industrial / Power, 30 kA at 1.5 kVDC, PV, MP Power A95 Series, 90 A, 1.5 kV, 24mm x 65mm

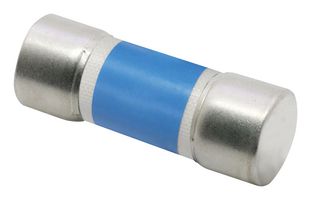

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP011851Copy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 4208081 |
| Product Range | MP Power A95 Series |
| Your Part Number | |
| Technical Datasheet |
46 In Stock
Need more?
46 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,295.830 |
| 3+ | Rs.1,856.720 |
| 10+ | Rs.1,803.260 |
| 25+ | Rs.1,528.340 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,295.83
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP011851Copy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 4208081 |
| Product Range | MP Power A95 Series |
| Technical Datasheet | |
| Product Range | MP Power A95 Series |
| Fuse Current | 90A |
| Voltage Rating VAC | - |
| Voltage Rating VDC | 1.5kV |
| Fuse Size Metric | 24mm x 65mm |
| Fuse Size Imperial | 0.94" x 2.56" |
| Blow Characteristic | Fast Acting |
| Breaking Capacity Current AC | 30kA |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
MP011851 is a high-performance cartridge fuse, designed for use in photovoltaic (PV) systems, measuring 24mm x 65mm. This fuse is specifically engineered for handling 30 kA at 1.5 kVdc with a 90 A rating, suitable for industrial and power applications in PV combiner/junction boxes, inverters, and battery charge controllers.
- Optimized for high-power PV applications
- Meets critical industry standards UL 248-19 and IEC 60269-6, ensuring compatibility and safety
- Durable construction
- Versatile mounting options
- Produced under the IATF 16949 quality system, guaranteeing high manufacturing standards
- Applications include PV combiner / junction boxes, Inverters and Battery charge controllers
- The fuse body is made of glass-fiber.
- The terminals cap is composed of Copper T2
- The element used in this fuse is silver (Ag), and the filler material is silica sand
Applications
Industrial, Automotive Systems, Safety, General Purposes, Power Management, Electrical and Electronics
Notes
UL and TUV approved.
Technical Specifications
| Product Range | MP Power A95 Series |
|---|---|
| Voltage Rating VAC | - |
| Fuse Size Metric | 24mm x 65mm |
| Blow Characteristic | Fast Acting |
| SVHC | No SVHC (04-Feb-2026) |
| Fuse Current | 90A |
|---|---|
| Voltage Rating VDC | 1.5kV |
| Fuse Size Imperial | 0.94" x 2.56" |
| Breaking Capacity Current AC | 30kA |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85361010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 50 |
