MPCMA36N-S-DC12V-A-R
Automotive Relay, Sealed, 12 VDC, 70 A, SPST-NO, Socket, Quick Connect, MP Automotive Relays

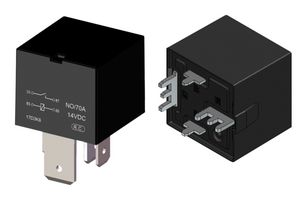

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MPCMA36N-S-DC12V-A-RCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4323469 |
| Product Range | MP Automotive Relays |
| Your Part Number | |
| Technical Datasheet |
218 In Stock
Need more?
218 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.588.400 |
| 15+ | Rs.445.850 |
| 75+ | Rs.414.030 |
| 150+ | Rs.358.020 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.588.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MPCMA36N-S-DC12V-A-RCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4323469 |
| Product Range | MP Automotive Relays |
| Technical Datasheet | |
| Coil Voltage | 12VDC |
| Contact Current | 70A |
| Contact Configuration | SPST-NO |
| Relay Mounting | Socket |
| Relay Terminals | Quick Connect |
| Product Range | MP Automotive Relays |
| Contact Voltage DC Nom | 14V |
| Coil Resistance | 90ohm |
| Contact Material | Silver Alloy |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
MPCMA36N-S-DC12V-A-R is a sealed, NO, quick connect type automotive relay.
- General purpose automotive relay, 70A of switching capability
- Quick connect terminals and PCB terminals
- 1 Form A contact form, Ag alloy contact material
- 50mohm (24VDC/1A) max contact resistance, 100Mohm 500VDC min insulation resistance
- 100,000 cycles electrical life, 1,000,000 Cycles (300 cycles/minutes) mechanical life
- 10ms max operate time and 10ms max release time
- 12VDC nominal voltage, 90 ohm coil resistance (±10%)
- 7.8VDC operate voltage, 1.2VDC release voltage, 1.8W coil power
- Operating temperature range from -40°C to +125°C
- Dimension is 26.6mm × 26mm × 22.7mm
Technical Specifications
| Coil Voltage | 12VDC |
|---|---|
| Contact Configuration | SPST-NO |
| Relay Terminals | Quick Connect |
| Contact Voltage DC Nom | 14V |
| Contact Material | Silver Alloy |
| Contact Current | 70A |
|---|---|
| Relay Mounting | Socket |
| Product Range | MP Automotive Relays |
| Coil Resistance | 90ohm |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85364100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .032 |
