MPCMA53H-S-DC12V-A
Automotive Relay, Sealed, 12 VDC, 20 A, SPST-NO, Through Hole, PC Pin, MP Automotive Relays

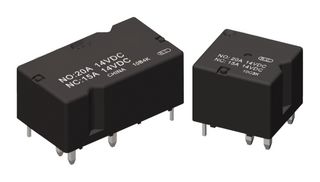

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMPCMA53H-S-DC12V-A
Order Code4323471
Product RangeMP Automotive Relays
Technical Datasheet
493 In Stock
Need more?
493 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.259.680 |
| 20+ | Rs.211.050 |
| 125+ | Rs.156.330 |
| 500+ | Rs.155.120 |
| 1250+ | Rs.150.250 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.259.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMPCMA53H-S-DC12V-A
Order Code4323471
Product RangeMP Automotive Relays
Technical Datasheet
Coil Voltage12VDC
Contact Current20A
Contact ConfigurationSPST-NO
Relay MountingThrough Hole
Relay TerminalsPC Pin
Product RangeMP Automotive Relays
Contact Voltage DC Nom14V
Coil Resistance261ohm
Contact MaterialSilver Alloy
SVHCNo SVHC (21-Jan-2025)
Product Overview
MPCMA53H-S-DC12V-A is a NO, PCB type, automotive relay. applications include car alarm, power window, central locking system, seat adjustment control, sunroof motor control, wiper, etc.
- Small and compact, 30A high contact capacity
- Low noise operation, contains no lead and features cadmium-free
- Contacts ensuring environment-friendly use
- 1 Form A contact form, Ag alloy contact material
- 100mohm (6VDC/1A) max contact resistance, 100Mohm 500VDC min insulation resistance
- 100,000 operations electrical, 10,000,000 operations mechanical life
- 12VDC nominal voltage, 261ohm ±10% coil resistance
- 6.9VDC operate voltage, 1.2VDC release voltage, 0.55W coil power
- 4ms max operate time, 2ms max release time
- Dimension is 13mm × 12mm × 10mm, operating temperature range from -40°C to +105°C
Technical Specifications
Coil Voltage
12VDC
Contact Configuration
SPST-NO
Relay Terminals
PC Pin
Contact Voltage DC Nom
14V
Contact Material
Silver Alloy
Contact Current
20A
Relay Mounting
Through Hole
Product Range
MP Automotive Relays
Coil Resistance
261ohm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85364100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004
