MCPIP-T12L-001
Inductive Proximity Sensor, Long Housing, M12, 2 mm, PNP, 10 V to 30 V, Pre-wired

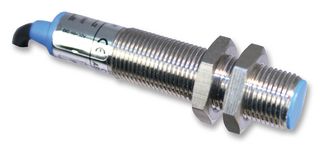

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP
Manufacturer Part NoMCPIP-T12L-001
Order Code2218036
Product RangeMCPIP Series
Technical Datasheet
372 In Stock
Need more?
372 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,514.110 |
| 10+ | Rs.1,377.100 |
| 25+ | Rs.1,262.340 |
| 50+ | Rs.1,165.150 |
| 100+ | Rs.1,082.010 |
| 200+ | Rs.1,009.410 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,514.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoMCPIP-T12L-001
Order Code2218036
Product RangeMCPIP Series
Technical Datasheet
Sensing Range Max2mm
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Sensing Distance Min-
Thread Size - MetricM12
Sensing Distance Max2mm
Sensor Output TypePNP-NO
Supply Voltage DC Min10V
Sensing Distance Nom-
Supply Voltage Min10VDC
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor Output Type3-Wire, PNP, NO
Sensor Case / PackageCylindrical M12 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP RatingIP67
Operating Temperature Min-20°C
Product RangeMCPIP Series
SVHCNo SVHC (16-Jul-2019)
Product Overview
The MCPIP-T12L-001 is a DC 3-wire Inductive Sensor with LED operation indicate lamp. Brass chrome plated, proof of oil, water acid, alkaline. Over-current protection. Widely applied in measuring, counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
- Cylinder shape
- Shielded
- PNP, NO output
- Long housing
- IP67 Protection rating
- -20 to 70°C Operating temperature
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Sensing & Instrumentation
Technical Specifications
Sensing Range Max
2mm
Operating Temperature Max
70°C
Thread Size - Metric
M12
Sensor Output Type
PNP-NO
Sensing Distance Nom
-
Supply Voltage DC Max
30V
Sensor Output Type
3-Wire, PNP, NO
Sensor Terminals
Cable
IP Rating
IP67
Product Range
MCPIP Series
Sensor Type
Inductive Proximity Sensor
Sensing Distance Min
-
Sensing Distance Max
2mm
Supply Voltage DC Min
10V
Supply Voltage Min
10VDC
Supply Voltage Max
30VDC
Sensor Case / Package
Cylindrical M12 Thread
Sensor Body Material
Brass
Operating Temperature Min
-20°C
SVHC
No SVHC (16-Jul-2019)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (16-Jul-2019)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.088405
