LQH32MN220J23L
Wirewound Inductor, 22 µH, 2.8 ohm, 14 MHz, 150 mA, 1210 [3225 Metric], LQH32MN_23 Series

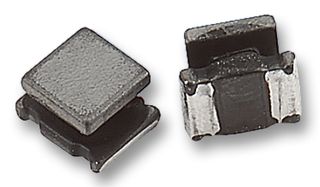

Image is for illustrative purposes only. Please refer to product description.
![MURATA LQH32MN220J23L Wirewound Inductor, 22 µH, 2.8 ohm, 14 MHz, 150 mA, 1210 [3225 Metric], LQH32MN_23 Series](https://in.element14.com/productimages/standard/en_GB/42418344.jpg)
| Manufacturer | MURATA |
|---|---|
| Manufacturer Part No | LQH32MN220J23LCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | Re-Reel9522069RL Cut Tape9522069 |
| Product Range | LQH32MN_23 Series |
| Your Part Number | |
| Technical Datasheet |
954 In Stock
Need more?
954 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 5 | Rs.26.630 | Rs.133.15 |
| Total Price | Rs.133.15 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 5+ | Rs.26.630 |
| 50+ | Rs.21.870 |
| 250+ | Rs.18.070 |
| 500+ | Rs.15.880 |
| 1000+ | Rs.13.690 |
| 2000+ | Rs.12.840 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MURATA |
|---|---|
| Manufacturer Part No | LQH32MN220J23LCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | Re-Reel9522069RL Cut Tape9522069 |
| Product Range | LQH32MN_23 Series |
| Technical Datasheet | |
| Inductance | 22µH |
| DC Resistance Max | 2.8ohm |
| Self Resonant Frequency | 14MHz |
| DC Current Rating | 150mA |
| Inductor Case / Package | 1210 [3225 Metric] |
| Product Range | LQH32MN_23 Series |
| Inductance Tolerance | ± 5% |
| Inductor Construction | Shielded |
| Core Material | Ferrite |
| Product Length | 3.2mm |
| Product Width | 2.5mm |
| Product Height | 2mm |
| SVHC | No SVHC (04-Feb-2026) |
Technical Specifications
| Inductance | 22µH |
|---|---|
| Self Resonant Frequency | 14MHz |
| Inductor Case / Package | 1210 [3225 Metric] |
| Inductance Tolerance | ± 5% |
| Core Material | Ferrite |
| Product Width | 2.5mm |
| SVHC | No SVHC (04-Feb-2026) |
| DC Resistance Max | 2.8ohm |
|---|---|
| DC Current Rating | 150mA |
| Product Range | LQH32MN_23 Series |
| Inductor Construction | Shielded |
| Product Length | 3.2mm |
| Product Height | 2mm |
Technical Docs (1)
Alternatives for LQH32MN220J23L
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00005 |
