FRDM33772BTPLEVB

Evaluation Board, MC33772 Battery Cell Controller, 6-Channel, Li-Ion Isolated Daisy Chain Comms

FRDM33772BTPLEVB - Evaluation Board, MC33772 Battery Cell Controller, 6-Channel, Li-Ion Isolated Daisy Chain Comms

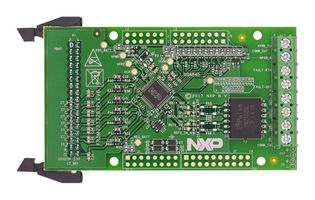

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
FRDM33772BTPLEVB
Order Code:
2889699
Technical Datasheet:
FRDM33772BTPLEVB   Datasheet
See all Technical Docs

Product Overview

FRDM33772BSPIEVB evaluation board features MC33772, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing, GPIOs, external EEPROM and fault detection pin report. The kit is designed to support customer development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3~6 logic cells in series. The battery cell information is transferred to the microcontroller unit (MCU) through SPI interface.
  • LED indicator for operation mode
  • Cell-balancing resistors and integrated drivers
  • Cell sense input with low pass filter
  • Interface I2C link to an external local EEPROM to store user-defined calibration parameters
  • Fault detection pin report

Contents

Evaluation board, Quick start guide.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Power Management - Battery

:
Li-Ion Battery Cell Controller

:
MC33772B

:
NXP

:
Eval Board MC33772B

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Available for back order

More stock available to supplier lead times which is approximately 2/8/21

Notify me when back in stock

Rs.7,022.90

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.7,022.90
