                      MC13213

                      TRANSCEIVER, LOW POWER, 2.4GHZ, SMD

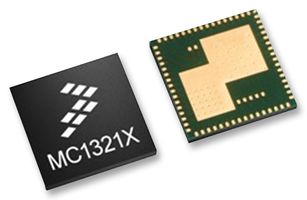

                      NXP MC13213
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerNXP
                      Manufacturer Part NoMC13213
                      Order Code1336819
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Manufactured

                      Product Information

                      ManufacturerNXP
                      Manufacturer Part NoMC13213
                      Order Code1336819
                      Technical Datasheet

                      Data Sheet

                      RF / IF ModulationO-QPSK
                      Receiving Current42mA
                      Transmitting Current35mA
                      RF IC Case StyleLGA
                      No. of Pins71Pins
                      Supply Voltage Min2V
                      Supply Voltage Max3.4V
                      Operating Temperature Min-40°C
                      Operating Temperature Max85°C
                      Product Range-

                      Product Overview

                      The MC13213 is a 2.4GHz Low Power Transceiver for the IEEE® 802.15.4 standard plus microcontroller. The MC1321x family is Freescale's second-generation ZigBee platform which incorporates a low power 2.4GHz radio frequency transceiver and an 8-bit microcontroller. The MC1321x solution can be used for wireless applications from simple proprietary point-to-point connectivity to a complete ZigBee mesh network. The MC1321x contains an RF transceiver which is an 802.15.4 Standard compliant radio that operates in the 2.4GHz ISM frequency band. The transceiver includes a low noise amplifier, 1mW nominal output power, PA with internal voltage controlled oscillator (VCO), integrated transmit/receive switch, on-board power supply regulation and full spread-spectrum encoding and decoding. The MC1321x also contains a microcontroller based on the HCS08 family of microcontroller units (MCU), specifically the HCS08 Version A and can provide up to 60kB of flash memory and 4kB of RAM.

                      • 40MHz HCS08 low-voltage/-power core
                      • 60kB Flash and 4kB RAM memory
                      • Seven addressing modes for CPU
                      • Multiple 16-bit Timers
                      • Low external component count
                      • Requires a single 16MHz crystal
                      • Programmable frequency clock output for MCU
                      • Up to 38 GPIO
                      • 8-bit port Keyboard interrupt (KBI)
                      • 8-channel 10-bit ADC
                      • Two independent serial communication interfaces (SCI) supporting up to 115.2kBaud
                      • Inter-integrated circuit (I²C) with 100kbps maximum bus loading
                      • Internal clock generator (ICG) at 100kHz or 16MHz (including internal reference generator)
                      • Low-voltage detection
                      • In-circuit debug and flash programming available via on-chip background debug module (BDM)
                      • Programmable low voltage interrupt (LVI)
                      • Common on-chip processor (COP) watchdog timer
                      • Receive sensitivity of -92dBm (typical) at 1% PER
                      • Integrated transmit/receive switch
                      • Supports single-ended or full differential operation
                      • Supports external low-noise amplifier (LNA) and/or power amplifier (PA)
                      • Three lower power modes for increased power life
                      • Small memory footprint (<lt/>4kB)
                      • Supports star, mesh and cluster tree topologies

                      Applications

                      RF Communications, Automation & Process Control, Lighting, Industrial

                      Technical Specifications

                      RF / IF Modulation

                      O-QPSK

                      Transmitting Current

                      35mA

                      No. of Pins

                      71Pins

                      Supply Voltage Max

                      3.4V

                      Operating Temperature Max

                      85°C

                      Receiving Current

                      42mA

                      RF IC Case Style

                      LGA

                      Supply Voltage Min

                      2V

                      Operating Temperature Min

                      -40°C

                      Product Range

                      -

                      Technical Docs (2)

                      Product Change Notice EN

                      Technical Data Sheet EN

                      Associated Products

                      5 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      United States
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85423100
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.005625
