| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | QN9080SIP-DKCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3003145 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.12,813.910 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | QN9080SIP-DKCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3003145 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| Silicon Core Number | QN9080, NT3H2211 |
| Kit Application Type | Wireless Connectivity |
| Application Sub Type | Bluetooth Low Energy |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F |
| Silicon Family Name | - |
| Kit Contents | Dev Kit QN9080/NT3H2211, USB Dongle, NFC Antenna, USB Cable |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

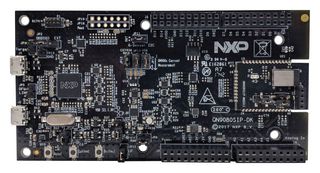

QN9080SIP-DK is a development kit which is highly extensible platform for application development of QN9080SIP. This development kit is enabled by QN9080SIP built on QN9080 Bluetooth MCU and NT3H2211 NTAG® supporting Bluetooth 5, generic FSK and NFC. The QN9080SIP also integrates 32MHz and 32kHz crystals, RF matching and 2.4GHz antenna. The QN9080SIP-DK kit contains a development board, a USB dongle and an NFC antenna. The development board integrates buttons, switches, piezo buzzer, LEDs for easy-use, provides SWD/JTAG and USB interface for debugging and is form-factor compatible with the Arduino® pin layout for more expansion options. The USB dongle is a Bluetooth device powered by QN9080.
- Fully certified module supporting Bluetooth and NFC
- Arduino® interface
- CMSIS-DAP (default) and the J-Link interface for debugging
- UART/I2C/SPI/USB connectivity support
- Full MCUXpresso support
- Reuse all QN9080 tools
- PCB inverted NFC antenna
- USB dongle for interaction with DK board
Contents
QN9080SIP-DK development board, QN9080 USB dongle, NFC antenna, USB cable.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Kit Application Type | Wireless Connectivity |
| Core Architecture | ARM |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | QN9080, NT3H2211 |
|---|---|
| Application Sub Type | Bluetooth Low Energy |
| Core Sub-Architecture | Cortex-M4F |
| Kit Contents | Dev Kit QN9080/NT3H2211, USB Dongle, NFC Antenna, USB Cable |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84715000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002 |
