QN9090-DK006

DEV BOARD, BLUETOOTH LOW ENERGY

NXP QN9090-DK006
×

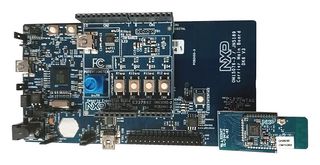

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
QN9090-DK006
Order Code:
3295925
Technical Datasheet:
QN9090-DK006   Datasheet
See all Technical Docs

Product Overview

Development platform for QN9090/30(T) wireless MCUs. The QN9090 development platform comes with an integrated programmer and debugger along with suite of example applications showcasing standard GATT profiles in a complete software development kit (SDK). It is designed to make it as easy as possible to get started with project based on NXP® QN9090/30 (T) Bluetooth Low Energy SOC with optional NFC technology. Target applications include blood glucose management. building security, wristband, inventory and supply chain management, home control panel, toys and board games.
  • QN9090/30(T) Bluetooth Low Energy MCU with Arm®Cortex®-M4 CPU
  • Module site for QN9090 (T) Bluetooth LE 5.0 MCU with NFC NTAG
  • PCB antenna for NFC tag
  • On-board, high-speed USB based, Link2 debug probe with ARM's CMSIS-DAP and SEGGER J-Link
  • Expansion options based on Arduino R3 plus additional expansion port pins
  • Power, reset, ISP and UART Tx/Rx status LEDs
  • Target reset and user buttons
  • On-board 3.3V from USB port, 4xAAA batteries, 2xAAA batteries or external power supply option
  • Built-in power consumption measurement
  • 8Mb Macronix MX25R QSPI flash

Contents

Mother board (OM15076), Generic daughter card (OM15082), Module with mezzanine (QN9090-001-T10).

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
NXP

:
QN9090

:
Wireless Connectivity

:
Bluetooth Low Energy

:
ARM

:
Cortex-M4

:
-

:
Mother Board (OM15076), Generic Daughter Card (OM15082), Module with Mezzanine (QN9090-001-T10)

:
-
