LC201-25.

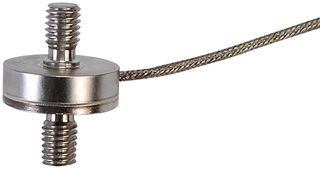

COMPRSN/TENSION LOAD CELL, 25LB, 10VDC
Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoLC201-25.
Order Code2821399
Product RangeLC201 Series
Technical Datasheet
18 In Stock
15 more incoming. You can reserve stock now
18 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.90,563.530 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.90,563.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMEGA
Manufacturer Part NoLC201-25.
Order Code2821399
Product RangeLC201 Series
Technical Datasheet
Load Cell TypeSubminiature Compression
Supply Voltage10VDC
Weight Capacity25lbf
Excitation Voltage Min-
Excitation Voltage Max15VDC
Sensor Output TypeRatiometric
Connection Type4 Conductor Cable
Linearity± 1 %
Cable Length - Metric1.5m
Cable Length - Imperial5ft
Operating Temperature Min-54°C
Operating Temperature Max121°C
Product RangeLC201 Series
Technical Specifications
Load Cell Type
Subminiature Compression
Weight Capacity
25lbf
Excitation Voltage Max
15VDC
Connection Type
4 Conductor Cable
Cable Length - Metric
1.5m
Operating Temperature Min
-54°C
Product Range
LC201 Series
Supply Voltage
10VDC
Excitation Voltage Min
-
Sensor Output Type
Ratiometric
Linearity
± 1 %
Cable Length - Imperial
5ft
Operating Temperature Max
121°C
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.067586
