LC302-50
Load Cell, 1 mV / V, 50 lb, 50 VDC, LC302 Series

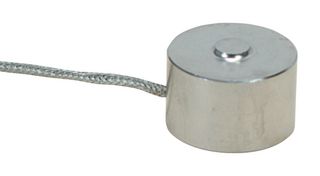

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoLC302-50
Order Code3794996
Product RangeLC302 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.58,687.440 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.58,687.44
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoLC302-50
Order Code3794996
Product RangeLC302 Series
Technical Datasheet
Load Capacity50lb
Supply Voltage50VDC
Cell Output mV / V1
Operating Temperature Min-54°C
Operating Temperature Max125°C
Product RangeLC302 Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
LC302 series is a miniature compression load cell. It is only 3/4inch in diameter and fits in the smallest places. Its high 0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gauge assures long term reliability in industrial environments.
- Low 13mm profile
- Robotic and test bench applications
- Built-in load button for easy installation
- 5-point traceable calibration provided
- 5VDC, 15VDC maximum excitation
- 1mV/V (nominal) output, 50lb capacity
- Operating temperature range from -54 to 107°C
- 150% of capacity safe overload
- IP54 rated
- 1.5m (5') 4-conductor insulated cable with temperature compensation board
Technical Specifications
Load Capacity
50lb
Cell Output mV / V
1
Operating Temperature Max
125°C
SVHC
No SVHC (17-Jan-2022)
Supply Voltage
50VDC
Operating Temperature Min
-54°C
Product Range
LC302 Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.081193
