E2E-X7D1-N 2M OMS
Inductive Proximity Sensor, Cylindrical, E2E Series, M18, 7 mm, NO, 12 V to 24 V, Pre-wired

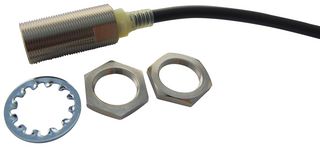

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoE2E-X7D1-N 2M OMS
Order Code2667272
Technical Datasheet
1 In Stock
Need more?
1 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.12,350.790 |
| 5+ | Rs.11,623.440 |
| 10+ | Rs.10,708.180 |
| 25+ | Rs.10,108.930 |
| 50+ | Rs.9,666.770 |
| 100+ | Rs.9,502.440 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.12,350.79
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoE2E-X7D1-N 2M OMS
Order Code2667272
Technical Datasheet
Sensing Range Max7mm
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Sensing Distance Min-
Thread Size - MetricM18
Sensing Distance Max-
Sensor Output TypeSPST-NO
Supply Voltage DC Min12V
Sensing Distance Nom7mm
Supply Voltage Min12VDC
Supply Voltage DC Max24V
Supply Voltage Max24VDC
Sensor Output Type2-Wire, NO
Sensor Case / PackageCylindrical M18 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP RatingIP67
Operating Temperature Min-25°C
Product Overview
E2E-X7D1-N 2M OMS is an E2E standard proximity sensor. It features superior environment resistance with standard cable made of oil-resistant PVC and sensing surface made of material that resists cutting oil.
- Standard sensor for detecting ferrous metals
- Wide array of variations, ideal for a variety of applications
- Useful to help prevent disconnection, cable protector provided as a standard feature
- Lineup includes model with Smartclick pre-wired connectors for fast connection
- Cylindrical (threaded) appearance
- 7mm sensing distance
- DC 2-wire polarity/no polarity power supply and output specifications
- Normally open (NO) form of output switching element
- Ambient operating temperature range from -25 to 70°C (with no icing or condensation)
- Insulation resistance: 50Mohm min. (at 500V DC) between current-carrying parts and case
Warnings
This product is not designed or rated for ensuring safety of persons either directly or indirectly. Do not use it for such purposes.
Technical Specifications
Sensing Range Max
7mm
Operating Temperature Max
70°C
Thread Size - Metric
M18
Sensor Output Type
SPST-NO
Sensing Distance Nom
7mm
Supply Voltage DC Max
24V
Sensor Output Type
2-Wire, NO
Sensor Terminals
Cable
IP Rating
IP67
Sensor Type
Inductive Proximity Sensor
Sensing Distance Min
-
Sensing Distance Max
-
Supply Voltage DC Min
12V
Supply Voltage Min
12VDC
Supply Voltage Max
24VDC
Sensor Case / Package
Cylindrical M18 Thread
Sensor Body Material
Brass
Operating Temperature Min
-25°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.162
