Product Information
| Manufacturer | OMRON |
|---|---|
| Manufacturer Part No | Z-15GW-BCopy |
| Manufacturer Standard Lead Time | 2 weeks |
| Order Code | 2506846 |
| Product Range | Z Series |
| Technical Datasheet | |
| Microswitch Type | - |
| Microswitch Actuator | Hinge Lever |
| Contact Configuration | SPDT |
| Switch Terminals | Screw |
| Contact Current Max | 15A |
| Contact Voltage DC Nom | 14V |
| Product Range | Z Series |
| Contact Voltage AC Nom | 250V |
| Operating Force Max | 0.69N |
Product Overview

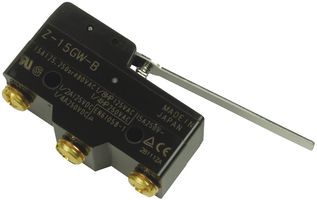

Z-15GW-B is a Z series general-purpose basic switch.
- 0.5mm (standard) contact gap
- Large switching capacity of 15A with high repeat accuracy
- Hinge lever actuator type, low OP contact terminal
- 0.69N max operating force, 0.14N min release force
- Screw terminal (with toothed washer)
- 15A max contact current, 14V DC nominal contact voltage
- 250V AC nominal contact voltage
- Operating speed range from 1mm to 1m/s, 100Mohm min insulation resistance at 500V DC
- IP00 rating, silver contact material, rivet shape
- Ambient operating temperature range from -25°C to 80°C
Technical Specifications
| Microswitch Type | - |
|---|---|
| Contact Configuration | SPDT |
| Contact Current Max | 15A |
| Product Range | Z Series |
| Operating Force Max | 0.69N |
| Microswitch Actuator | Hinge Lever |
|---|---|
| Switch Terminals | Screw |
| Contact Voltage DC Nom | 14V |
| Contact Voltage AC Nom | 250V |
