1832565
Pluggable Terminal Block, 7.62 mm, 6 Ways, 2.5 mm², Screw

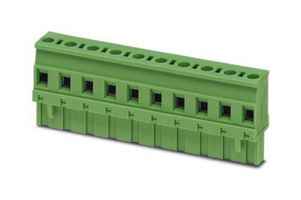

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part No1832565
Order Code3238865
Product RangeCLASSIC COMBICON GMVSTBR
Also Known As1832565, GMVSTBR 2,5/ 6-ST-7,62
Technical Datasheet
144 In Stock
Need more?
144 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.856.970 |
| 10+ | Rs.840.970 |
| 25+ | Rs.812.770 |
| 50+ | Rs.786.870 |
| 100+ | Rs.756.390 |
| 250+ | Rs.749.530 |
| 500+ | Rs.741.150 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.856.97
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No1832565
Order Code3238865
Product RangeCLASSIC COMBICON GMVSTBR
Also Known As1832565, GMVSTBR 2,5/ 6-ST-7,62
Technical Datasheet
Pitch Spacing7.62mm
No. of Positions6Ways
Wire Size (AWG)24AWG to 12AWG
Conductor Area CSA2.5mm²
Wire Connection MethodScrew
Rated Current12A
Rated Voltage630V
Product RangeCLASSIC COMBICON GMVSTBR
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Pitch Spacing
7.62mm
Wire Size (AWG)
24AWG to 12AWG
Wire Connection Method
Screw
Rated Voltage
630V
SVHC
No SVHC (21-Jan-2025)
No. of Positions
6Ways
Conductor Area CSA
2.5mm²
Rated Current
12A
Product Range
CLASSIC COMBICON GMVSTBR
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01467
