| Manufacturer | POMONA |
|---|---|
| Manufacturer Part No | 5898Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 4135970 |
| Your Part Number | |
| Technical Datasheet |
60 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.4,458.460 |
Product Information
| Manufacturer | POMONA |
|---|---|
| Manufacturer Part No | 5898Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 4135970 |
| Technical Datasheet | |
| Test Connector Type A | Test Tip Probe |
| Test Connector Type B | 4mm Right Angle Banana Plug, Shrouded |
| Voltage Rating | 1kV |
| Current Rating | 10A |
| Insulator Colour | Black, Red |
| Lead Length - Metric | 1.22m |
| Lead Length - Imperial | 48" |
| No. of Test Leads | 2 |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

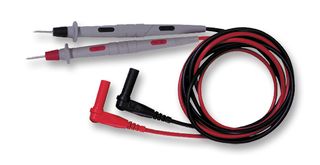

The 5898 is a Replacement Test Lead Kit with test probe and 4mm banana plug. The probe with Santoprene® rubber outer insulation for handling comfort added insulation protection and wire strain relief, polypropylene fire retardant inner insulation for probe rigidity, stainless steel tip features high conductivity for precision measurements, 18AWG stranding PVC insulated 0.144-inch outer diameter wire. The banana plug with nickel-plated beryllium copper spring for long insertion life, brass plug body, polypropylene insulation. Designed for Fluke, Amprobe, H-P, Tektronix and Wavetek DMM's with a safety style of sheathed banana plug. Probe body incorporates a two-step mould process. Probe test leads are designed with Overvoltage spike protection of up to 6kV. Probe body and banana plug are moulded directly to the wire for robust pull strength. Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
- Black and red insulator
- 1000V Maximum voltage
- High temperature resistance
Applications
Industrial, Test & Measurement
Contents
2-piece of each of black and red test lead.
Technical Specifications
| Test Connector Type A | Test Tip Probe |
|---|---|
| Voltage Rating | 1kV |
| Insulator Colour | Black, Red |
| Lead Length - Imperial | 48" |
| Product Range | - |
| Test Connector Type B | 4mm Right Angle Banana Plug, Shrouded |
|---|---|
| Current Rating | 10A |
| Lead Length - Metric | 1.22m |
| No. of Test Leads | 2 |
| SVHC | To Be Advised |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90329000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .12 |
