Available to Order
Manufacturer Standard Lead Time: 7 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.1,801.600 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,801.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview

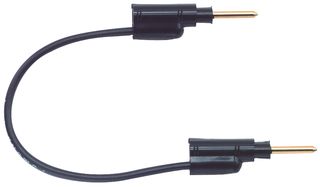

The Model P series Test Lead with stacking pin tip plug to stacking pin tip plug connection. The pin tip plug has gold-plated brass body, gold-plated beryllium copper stack-up spring, polypropylene insulation moulded to pin tip body and wire. The P series test leads are available in black and red colours.
- Mates to model #3542, 4773 or any other standard 0.08" pin jack
- Ideal for use as jumper wires on chassis boxes
- 55°C Maximum operating temperature
- Accepts 20AWG PVC insulated wire
- Operating Voltage: 3000 WVDC
- Current: 5 Amperes Cont.
- Cable Length of 4" (102mm)
- Color is Black
Applications
Test & Measurement, Aerospace, Defence, Military, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace
Notes
Exclusive 5% discount (already applied) on selected items from the Pomona Electronics range, valid until 31/12/2026. Terms and conditions apply.
Technical Specifications
Lead Length - Imperial
4"
Insulator Colour
Black
Voltage Rating
3kV
SVHC
No SVHC (15-Jun-2015)
Lead Length - Metric
101.6mm
Current Rating
5A
Product Range
P Series
Technical Docs (1)
Alternatives for P-4-0
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85389000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009
