RDK-142
REF DESIGN KIT, FOR TOP258

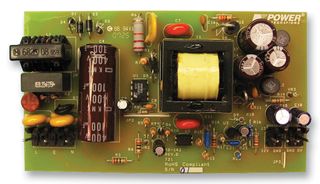

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-142
Order Code1500889
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-142
Order Code1500889
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
Silicon ManufacturerPower Integrations
Silicon Core NumberTOP258PN
Kit Application TypeDisplays
Application Sub TypeLCD Monitor
Core Architecture-
Core Sub-Architecture-
Silicon Family Name-
Kit ContentsSamples, Fully Functional Reference Board and Complete Documentation
Product RangeTUK SGACK902S Keystone Coupler
SVHCNo SVHC (15-Jan-2018)
Product Overview
The RDK-142 is a LCD monitor power supply utilizing a TOP258PN. This power supply is intended as a general purpose evaluation platform for TOPSwitch-HX.
- Low cost, low component count, high efficiency
- Delivers 35W at 50 °C ambient without requiring an external heat sink
- Meets output cross regulation requirements without linear regulators
- Ecosmart meets requirements for low no load and standby power consumption
- Accurate, auto recovering, hysteretic thermal shutdown function maintains safe PCB temperatures
- Auto restart protects against output short circuits and open feedback loops
- Output OVP protection configurable for latching or self recovering
- Input UV prevents power up/power down output glitches
- Meets EN55022 and CISPR-22 class B conducted EMI with greater then 10dBµV margin
