AS02008MO-R

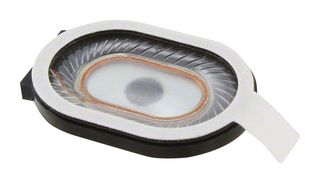

Speaker, 400 Hz to 20 kHz, 8 ohm, 1 W, 94 dB, Oval, SMD
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | PUI AUDIO |
|---|---|
| Manufacturer Part No | AS02008MO-RCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 4411350 |
| Your Part Number | |
| Technical Datasheet |
395 In Stock
Need more?
395 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.557.240 |
| 10+ | Rs.432.230 |
| 50+ | Rs.364.390 |
| 100+ | Rs.340.160 |
| 200+ | Rs.327.570 |
| 400+ | Rs.314.970 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.557.24
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PUI AUDIO |
|---|---|
| Manufacturer Part No | AS02008MO-RCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 4411350 |
| Technical Datasheet | |
| Driver Type | General Purpose |
| Impedance | 8ohm |
| Power Rating Nom | 500mW |
| External Width - Metric | 14mm |
| Resonant Frequency | 750Hz |
| Sound Pressure Level (SPL) | 94dB |
| Speaker Shape | Oval |
| Product Dimensions | 20mm x 14mm x 4mm |
| External Width - Imperial | 0.55" |
| Frequency Response Min | 400Hz |
| Frequency Range | 400Hz to 20kHz |
| Frequency Response Max | 20kHz |
| Temperature Grade | - |
| IP Rating | IP65 |
| Product Range | - |
| Speaker Mounting | SMD |
| Power Rating Max | 1W |
| External Length - Metric | 20mm |
| External Depth - Metric | 3.5mm |
| External Length - Imperial | 0.78" |
| External Depth - Imperial | 0.14" |
| SVHC | No SVHC (21-Jan-2025) |
Technical Specifications
| Driver Type | General Purpose |
|---|---|
| Power Rating Nom | 500mW |
| Resonant Frequency | 750Hz |
| Speaker Shape | Oval |
| External Width - Imperial | 0.55" |
| Frequency Range | 400Hz to 20kHz |
| Temperature Grade | - |
| Product Range | - |
| Power Rating Max | 1W |
| External Depth - Metric | 3.5mm |
| External Depth - Imperial | 0.14" |
| Impedance | 8ohm |
|---|---|
| External Width - Metric | 14mm |
| Sound Pressure Level (SPL) | 94dB |
| Product Dimensions | 20mm x 14mm x 4mm |
| Frequency Response Min | 400Hz |
| Frequency Response Max | 20kHz |
| IP Rating | IP65 |
| Speaker Mounting | SMD |
| External Length - Metric | 20mm |
| External Length - Imperial | 0.78" |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85189000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00132 |
