R161606000
RF / Coaxial Connector, N Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Beryllium Copper

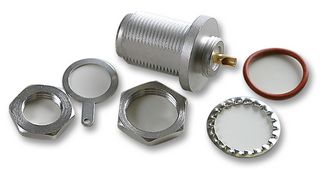

Image is for illustrative purposes only. Please refer to product description.
286 In Stock
Need more?
286 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,992.360 |
| 15+ | Rs.1,888.170 |
| 50+ | Rs.1,782.810 |
| 100+ | Rs.1,710.610 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,992.36
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRADIALL
Manufacturer Part NoR161606000
Order Code4195840
Technical Datasheet
Connector TypeN Coaxial
Connector Body StyleStraight Bulkhead Jack
Coaxial TerminationSolder
Coaxial Cable Types-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Connector MountingPanel Mount
Product Range-
Product Overview
The R161606000 is a Bulkhead N Jack Receptacle, rear mounting combination seal, with BBR-plated brass outer contact, gold over nickel plated beryllium copper center contact, BBR plated brass body. This N series plug receptacle has PTFE insulation, panel mounting and solder termination, high durability and proven strength.
- Standard coaxial connector
- Screw-on coupling
- High power rating
- Excellent RF performance
- Meets MIL-C-39012/MIL STD 348-304, CEI 169-16, CECC 22210, NF-C-93566 and DS 8811 standards
- -55 to 155°C Temperature range
Applications
Wireless, Aerospace, Defence, Military, Industrial
Technical Specifications
Connector Type
N Coaxial
Coaxial Termination
Solder
Contact Material
Beryllium Copper
Connector Mounting
Panel Mount
Connector Body Style
Straight Bulkhead Jack
Coaxial Cable Types
-
Contact Plating
Gold Plated Contacts
Product Range
-
Technical Docs (2)
Alternatives for R161606000
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.042
