R284C0351028
RF / Coaxial Cable Assembly, 3.28 ft, 1 m, RG174, BNC Straight Plug, BNC Straight Plug, 50 ohm

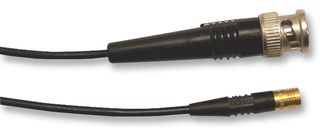

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351028Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1351896 |
| Your Part Number | |
| Technical Datasheet |
56 In Stock
300 more incoming. You can reserve stock now
56 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.6,081.980 |
| 5+ | Rs.5,960.350 |
| 10+ | Rs.5,838.710 |
| 25+ | Rs.5,717.070 |
| 50+ | Rs.5,595.430 |
| 100+ | Rs.5,473.790 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.6,081.98
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351028Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1351896 |
| Technical Datasheet | |
| Cable Length - Imperial | 3.28ft |
| Connector to Connector | BNC Plug to SMB Plug |
| Cable Length - Metric | 1m |
| Coaxial Cable Type | RG174 |
| Connector Type A | BNC Straight Plug |
| Connector Type B | BNC Straight Plug |
| Impedance | 50ohm |
| Jacket Colour | Black |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The R284C0351028 from Radial is a cable assembly. It has BNC straight plug crimp type cable 2.6/50S (R141.075.000) at one side and SMB straight plug crimp type cable 2.6/50+75S (R114.075.000) at other side.
- Overall length is 1m
- Black colour RG174 flexible cable (2.6/50S)
- Outer diameter is 2.79mm
- Characteristic impedance of 50 ohm
- Frequency range from DC to 1GHz
- Maximum voltage rating of 335Veff
- Insulation resistance of 1000Mohm (minimum)
- Insertion loss of 1.64dB maximum at 1GHz and 20°C
- Recommend minimum bend radius of 10mm
Applications
Industrial, RF Communications
Technical Specifications
| Cable Length - Imperial | 3.28ft |
|---|---|
| Cable Length - Metric | 1m |
| Connector Type A | BNC Straight Plug |
| Impedance | 50ohm |
| Product Range | - |
| Connector to Connector | BNC Plug to SMB Plug |
|---|---|
| Coaxial Cable Type | RG174 |
| Connector Type B | BNC Straight Plug |
| Jacket Colour | Black |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (2)
Alternatives for R284C0351028
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .032 |
