1.15.106.501/1300

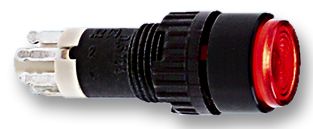

Industrial Pushbutton Switch, 9.1 mm, SPST-NO, SPST-NC, Momentary, Round, Transparent
Image is for illustrative purposes only. Please refer to product description.
622 In Stock
280 more incoming. You can reserve stock now
622 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,151.490 |
| 5+ | Rs.2,094.350 |
| 10+ | Rs.2,037.200 |
| 20+ | Rs.1,955.110 |
| 50+ | Rs.1,894.520 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,151.49
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRAFI
Manufacturer Part No1.15.106.501/1300
Order Code9927603
Technical Datasheet
Product Range-
Panel Cutout Diameter9.1mm
Contact ConfigurationSPST-NO, SPST-NC
Pushbutton Actuator StyleRound
Actuator / Cap ColourTransparent
Contact Current AC Max500mA
Contact Voltage VAC24V
Contact Current DC Max500mA
Contact Voltage VDC24V
IP RatingIP40
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColourRed
Panel Cutout (H x W)-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 1.15.106.501/1300 is an illuminated Pushbutton Switch with solder terminals, momentary contact function, 1NC+1NO contact arrangement, transparent red protruding lens and ring nut mounting.
- 300mΩ (according to life) Maximum contact resistance
- 24VAC/DC Maximum rated voltage
- IP40 Protection rating
- -25 to +70°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
-
Contact Configuration
SPST-NO, SPST-NC
Actuator / Cap Colour
Transparent
Contact Voltage VAC
24V
Contact Voltage VDC
24V
Switch Mounting
Panel Mount
Illumination Colour
Red
SVHC
No SVHC (21-Jan-2025)
Panel Cutout Diameter
9.1mm
Pushbutton Actuator Style
Round
Contact Current AC Max
500mA
Contact Current DC Max
500mA
IP Rating
IP40
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001814
