D-200-82
Butt Splice, Red, Mini Seal, 26 AWG, 20 AWG, 0.6 mm², Fluoropolymer
| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | D-200-82Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1891462 |
| Product Range | Mini Seal |
| Also Known As | M81824/11?1 |
| Your Part Number | |
| Technical Datasheet |
800 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.1,555.000 |
| 10+ | Rs.1,360.630 |
| 25+ | Rs.1,127.380 |
| 100+ | Rs.1,010.750 |
| 250+ | Rs.933.000 |
| 500+ | Rs.888.440 |
Product Information
| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | D-200-82Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1891462 |
| Product Range | Mini Seal |
| Also Known As | M81824/11?1 |
| Technical Datasheet | |
| Insulator Colour | Red |
| Product Range | Mini Seal |
| Wire Size AWG Min | 26AWG |
| Wire Size AWG Max | 20AWG |
| Conductor Area CSA | 0.6mm² |
| Insulator Material | Fluoropolymer |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

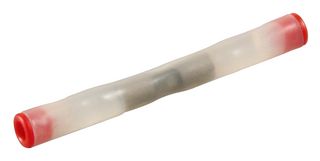

The D-200-82 is a Butt Splice Terminal made of copper alloy 101 or 102 per ASTM B75 with nickel plated (as per SAE AMS-QQ-N-290) finish. This closed barrel splice features a red heat shrink radiation-cross-linked modified fluoropolymer insulator. It provides sealing to unetched wire insulations, No need to staffer wire splice. Transparent heat-shrinkable insulation sleeve provides environmental protection and strain relief. The 200°C MiniSeal high-performance immersion-resistant crimp splice provides the smallest, lightest and the most environmental-resistant splice available, while meeting all requirements of SAE-AS81824/1 (modified for 200°C applications). It accepts 26 to 20AWG wire.
- Small size
- Lightweight
- 2.5kV Dielectric strength
- 5000MΩ Insulation resistance
- -55 to 200°C Temperature range
Applications
Aerospace, Defence, Military, Industrial
Technical Specifications
| Insulator Colour | Red |
|---|---|
| Wire Size AWG Min | 26AWG |
| Conductor Area CSA | 0.6mm² |
| SVHC | No SVHC (27-Jun-2024) |
| Product Range | Mini Seal |
|---|---|
| Wire Size AWG Max | 20AWG |
| Insulator Material | Fluoropolymer |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0004 |
