R-REF01-HB
Power Supply Accessory, Half-Bridge Gate Drive Power Supply, 1kV, TO247 / TO247-4L

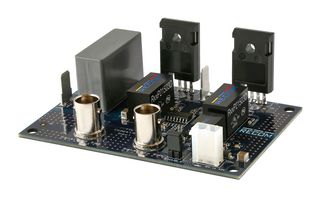

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | R-REF01-HBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3255705 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.19,208.990 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.19,208.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | R-REF01-HBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3255705 |
| Technical Datasheet | |
| Silicon Manufacturer | Silicon Laboratories |
| Silicon Core Number | SI8273 |
| Kit Application Type | Driver - Bridge |
| Application Sub Type | IGBT/MOSFET Gate Driver |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Reference Design Board R-REF01-HB |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
R-REF01-HB is a half-bridge gate-drive power supply reference design (RD). It consists of a half-bridge suitable for voltages up to 1KV and a fully-isolated driver stage with isolated power supplies for the low-side and the high-side switching transistors. It is suitable for single gate/drive supply voltages as low as +4V as well as dual gate drive supply voltages as high as +20V / -5V (30V max) with no maximum duty cycle limitations. Two R12P22005D, R12P21503D, R12P21509D and R12P06S DC/DC modules each are included in the R-REF01-HB design kit.
- Optimized for very high switching speed
- 2.5KV continuous input to output isolation
- High gate-drive currents (up to 10A source and sink)
- TTL-compatible signal input
- Single 15V to 42V supply
- Shoot-through protection
- Separate input for low and high-side switch for use with different topologies
- Qualified with 65KV/µs at Vcommon mode =1KV
- ESD sensitive
Technical Specifications
| Silicon Manufacturer | Silicon Laboratories |
|---|---|
| Kit Application Type | Driver - Bridge |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | SI8273 |
|---|---|
| Application Sub Type | IGBT/MOSFET Gate Driver |
| Core Sub-Architecture | - |
| Kit Contents | Reference Design Board R-REF01-HB |
| SVHC | Lead (04-Feb-2026) |
