R05CTE05S-CT
Isolated Surface Mount DC/DC Converter, Surface Mount DIP, 1:1, 1 W, 1 Output, 5 V

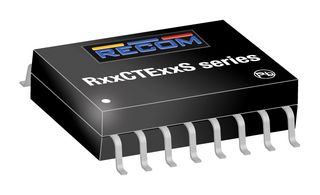

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | R05CTE05S-CTCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3858952 |
| Product Range | RxxCTExxS Series |
| Your Part Number | |
| Technical Datasheet |
60 In Stock
20 more incoming. You can reserve stock now
60 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.417.510 |
| 10+ | Rs.397.440 |
| 25+ | Rs.386.930 |
| 50+ | Rs.377.380 |
| 100+ | Rs.358.270 |
| 500+ | Rs.335.340 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.417.51
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | R05CTE05S-CTCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3858952 |
| Product Range | RxxCTExxS Series |
| Technical Datasheet | |
| Power Supply Applications | - |
| DC / DC Converter Type | Surface Mount DIP |
| Input Ratio | 1:1 |
| Output Power Max | 1W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 200mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Regulation | Regulated |
| Isolation Voltage | 3kV |
| Input Voltage DC Nom | 5V |
| DC / DC Converter Output Type | Fixed |
| Width | 7.5mm |
| Height | 2.5mm |
| Depth | 10.35mm |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| Product Range | RxxCTExxS Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
Low cost, low profile 1W 16-pin SOIC single output isolated DC/DC converter with 4.5-5.5V input range and a semi-regulated 5V output. There is no minimum load requirement which is ideal for applications which switch into very light load operation modes. The fully-automated design which is equipped with short-circuit, over-current and over-temperature protection ensures the highest reliability in applications such as communication, current sensing and COM port isolation.
- Compact 10.35 x 7.5mm SMD package
- Low profile (2.5mm)
- Standard 3KVDC/1min isolation
- Low EMI emissions
- 54% efficiency (typical)
- Ultra-wide temperature range -40°C to +125°C
Technical Specifications
| Power Supply Applications | - |
|---|---|
| Input Ratio | 1:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 200mA |
| Output Current - Output 2 | - |
| Isolation Voltage | 3kV |
| DC / DC Converter Output Type | Fixed |
| Height | 2.5mm |
| Input Voltage DC Min | 4.5V |
| Product Range | RxxCTExxS Series |
| DC / DC Converter Type | Surface Mount DIP |
|---|---|
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | - |
| Output Regulation | Regulated |
| Input Voltage DC Nom | 5V |
| Width | 7.5mm |
| Depth | 10.35mm |
| Input Voltage DC Max | 5.5V |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0001 |
