RBB10-2.0-CT
Non Isolated POL DC/DC Converter, ITE, Module, 1 Output, 10 W, 5 V, 2 A
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | RBB10-2.0-CTCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3977343 |
| Product Range | RBB10-2.0 Series |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.1,238.180 |
| 5+ | Rs.1,192.320 |
| 10+ | Rs.1,172.260 |
| 50+ | Rs.1,139.270 |
| 100+ | Rs.1,120.750 |
| 250+ | Rs.1,072.900 |
Product Information
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | RBB10-2.0-CTCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3977343 |
| Product Range | RBB10-2.0 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | Module |
| No. of Outputs | 1 Output |
| Output Power Max | 10W |
| Output Voltage Nom | 5V |
| Output Current Max | 2A |
| DC / DC Converter Output Type | Fixed, Adjustable |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Min | 2.3V |
| Input Voltage DC Max | 5.5V |
| Depth | 12.19mm |
| Width | 12.19mm |
| Height | 3.75mm |
| Product Range | RBB10-2.0 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

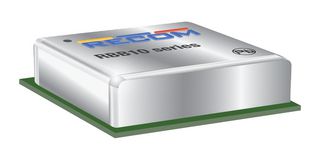

RBB10-2.0-CT is a RBB10-2.0 series single output DC/DC converter. It is a 4A non-isolated buck/boost regulator power module where the input voltage can be higher, lower or same as output voltage. Transition from buck to boost mode is smooth without any interruption to the output. The compact DOSA-compatible footprint module has a low profile of only 3.75mm, but with an efficiency of up to 95%, the RBB10-2.0 can operate at full load in ambient temperatures as high as 85°C without forced air cooling. The package has 6-sided shielding for optimal EMC performance and excellent thermal management. Typical applications include USB voltage regenerators, 3.3V<lt/>-<gt/>5V converters and supercapacitor or Li-Ion battery regulators.
- 2.3 - 5.5VDC input voltage, 5VDC output voltage
- 20W buck/boost converter
- <gt/>90% efficiency from 100mA – 3000mA load
- 7µA standby power consumption
- Low profile, thermally enhanced 25pad LGA package
- Dimension (LxWxH) is 12.19 x 12.19 x 3.75mm
- EN55032 compliant
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| No. of Outputs | 1 Output |
| Output Voltage Nom | 5V |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Min | 2.3V |
| Depth | 12.19mm |
| Height | 3.75mm |
| SVHC | No SVHC (04-Feb-2026) |
| DC / DC Converter Type | Module |
|---|---|
| Output Power Max | 10W |
| Output Current Max | 2A |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Max | 5.5V |
| Width | 12.19mm |
| Product Range | RBB10-2.0 Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Slovak Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0011 |
