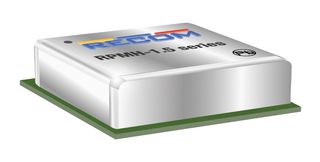

RPMH5.0-1.5-CT
Non Isolated POL DC/DC Converter, ITE, Module, 1 Output, 7.5 W, 5 V, 1.5 A
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | RPMH5.0-1.5-CTCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3977374 |
| Product Range | RPMH-1.5 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.985.000 |
| 5+ | Rs.948.700 |
| 10+ | Rs.933.410 |
| 50+ | Rs.863.670 |
| 100+ | Rs.856.020 |
| 250+ | Rs.838.900 |
Product Information
| Manufacturer | RECOM POWER |
|---|---|
| Manufacturer Part No | RPMH5.0-1.5-CTCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3977374 |
| Product Range | RPMH-1.5 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | Module |
| No. of Outputs | 1 Output |
| Output Power Max | 7.5W |
| Output Voltage Nom | 5V |
| Output Current Max | 1.5A |
| DC / DC Converter Output Type | Fixed, Adjustable |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Min | 7V |
| Input Voltage DC Max | 60V |
| Depth | 12.19mm |
| Width | 12.19mm |
| Height | 3.75mm |
| Product Range | RPMH-1.5 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
RPMH5.0-1.5-CT is a RPMH-1.5 series DC/DC converter. It is a wide input voltage, 1.5A non-isolated switching regulator power module. The module accepts up to 60VDC input and provides a trimmable output from 2.6 up to 28VDC and comes complete with a full set of features including adjustable output, on/off control, and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 97%, the device can operate at full load in ambient temperatures as high as +100°C and with power derating up to 105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
- Wide input voltage of 7 to 60VDC, 5VDC output voltage
- High power density (LxWxH = 12.19x12.19x3.75)
- Wide operating temperature -40°C to 100°C at full load
- 1.5A output current
- Thermally and EMI enhanced 25 pad LGA package
- Dimension (LxWxH) is 12.19 x 12.19 x 3.75mm
- 3 year warranty
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| No. of Outputs | 1 Output |
| Output Voltage Nom | 5V |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Min | 7V |
| Depth | 12.19mm |
| Height | 3.75mm |
| SVHC | No SVHC (04-Feb-2026) |
| DC / DC Converter Type | Module |
|---|---|
| Output Power Max | 7.5W |
| Output Current Max | 1.5A |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Max | 60V |
| Width | 12.19mm |
| Product Range | RPMH-1.5 Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Thailand Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001 |
