SLG47011V-DIP
Prototyping Board, DIP-20, Breadboarding and Fast Prototypes
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | SLG47011V-DIPCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4562116 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.483.410 |
| 5+ | Rs.477.370 |
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | SLG47011V-DIPCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4562116 |
| Technical Datasheet | |
| Accessory Type | DIP-20 Prototyping Board |
| For Use With | Renesas GreenPAK Advanced Development Boards |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

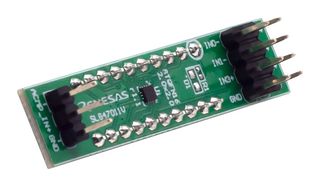

SLG47011V-DIP 20-pin DIP prototyping board is perfect for breadboarding and fast prototypes. It requires the DIP adapter (SLG4SA-DIP) to use it with the GreenPAK™ advanced development board. This GreenPAK DIP adapter is a small PCB that lets you adapt STQFN packages into a DIP footprint. This board can speed up your design prototyping and testing. This small board 0.43 x 1.84inch uses 20 pins DIP footprint with 0.3-inch width. You can also use this adapter for prototyping by making the STQFN-16 package compatible with solder-free breadboards. The SLG47011 is a programmable mixed-signal matrix IC with analogue-to-digital (ADC) conversion and analogue features. This highly versatile device allows various mixed-signal functions to be designed within a tiny, low-power, single integrated circuit.
- Simplifies prototyping of SMT Ics
- Optional VDD LED indicator
- Decoupling capacitor included
- Optional I²C pull-up resistors
- Low-cost option
Technical Specifications
| Accessory Type | DIP-20 Prototyping Board |
|---|---|
| Product Range | - |
| For Use With | Renesas GreenPAK Advanced Development Boards |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0003 |
