SLG47105V-DIP
Proto Board, 20-Pin DIP, GreenPAK SLG47105 Series High Voltage Programmable Mixed-Signal Matrix

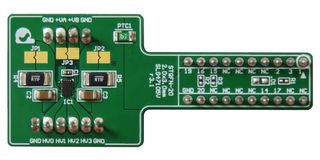

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | SLG47105V-DIPCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3931960 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.487.230 |
| 5+ | Rs.477.490 |
Price for:Box of 1
Minimum: 1
Multiple: 1
Rs.487.23
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | SLG47105V-DIPCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3931960 |
| Technical Datasheet | |
| Accessory Type | 20-Pin DIP Proto Board |
| For Use With | Renesas GreenPAK SLG47105 Series High Voltage Programmable Mixed-Signal Matrix |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
SLG47105V-DIP GreenPAK DIP adapter is a small PCB that allows you to adapt STQFN packages into a DIP footprint. This board can speed up your design prototyping and testing. This small board, 0.90x2.20inch (22.86mm x 55.88mm), uses 20 pins DIP footprint with 0.3inch width. You can also use this adapter for prototyping by making STQFN package compatible with solder free breadboards.
- Perfect for bread boarding and fast prototypes
- Simplifies prototyping of SMT IC's
- Four high voltage high current output GPOs
- Current up to 1A per HV GPO
- Current sensing resistors
- Optional VDD LED indicator
- Decoupling capacitors included
- Screw terminals for high voltage and high current lines
- Optional I2C pull-up resistors
Notes
Requires the GreenPAK DIP adapter (SLG4SA-DIP) to use it with the GreenPAK advanced development board.
Technical Specifications
| Accessory Type | 20-Pin DIP Proto Board |
|---|---|
| Product Range | - |
| For Use With | Renesas GreenPAK SLG47105 Series High Voltage Programmable Mixed-Signal Matrix |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
