NPA101
POWER METER, 1CH, 100KHZ, 100 TO 230V
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | NPA101Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4373380 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.265,532.780 |
Product Information
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | NPA101Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4373380 |
| Technical Datasheet | |
| Analyser Functions | Active/Apparent/Reactive Power, Current, Data Logging, Energy, Frequency, Phase Jump, Voltage |
| No. of Channels | 1 Channel |
| Voltage Range rms | 100V to 230V |
| Bandwidth | 100kHz |
| External Height | 97mm |
| External Width | 222mm |
| External Depth | 291mm |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

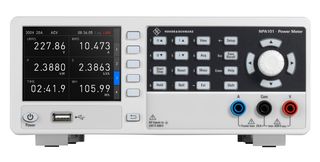

R&S®NPA101 is a compact power meter for AC/DC load and standby current characterization. The R&S®NPA101 comes with a brilliant QVGA colour display (320 × 240 pixel) that can simultaneously display up to 10 user‑configurable measurement results with a refresh rate of 10 measurements per second. The instrument has a basic accuracy of 0.05%. Signals are acquired from DC to 100KHz with a sampling rate of 500Ksample/s. Current and voltage are displayed with 16bit resolution. The R&S®NPA101 logging function lets users store measured data with a timestamp in .CSV format for a nearly unlimited period of time. Screen content can be saved to a USB flash drive at the push of a button.
- Power measurement range from 50µW to 12KW
- Operating temperature range +5°C to +40°C
- Dimension is 222mm × 97mm × 291mm (8.74in × 3.82in × 11.46in)
Technical Specifications
| Analyser Functions | Active/Apparent/Reactive Power, Current, Data Logging, Energy, Frequency, Phase Jump, Voltage |
|---|---|
| Voltage Range rms | 100V to 230V |
| External Height | 97mm |
| External Depth | 291mm |
| SVHC | To Be Advised |
| No. of Channels | 1 Channel |
|---|---|
| Bandwidth | 100kHz |
| External Width | 222mm |
| Product Range | - |
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309090 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 4 |
