400LLE4.7MEFC10X12.5
Electrolytic Capacitor, Miniature, 4.7 µF, 400 V, ± 20%, Radial Leaded, 15000 hours @ 105°C, Polar
1,000 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.48.910 |
| 50+ | Rs.28.910 |
| 100+ | Rs.24.770 |
| 250+ | Rs.22.030 |
| 500+ | Rs.20.220 |
| 1000+ | Rs.18.290 |
Product Information
Product Overview

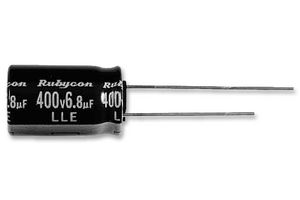

The 400LLE4.7MEFC10X12.5 is a radial leaded aluminium Electrolytic Capacitor. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV (audio and visual) equipment and camera flashes.
- PET sleeve
- Ultra long life
- 122mA RMS at 100kHz/+105°C Rated ripple current
Applications
Computers & Computer Peripherals, Aerospace, Defence, Military, Multimedia, Consumer Electronics, LED Lighting
Technical Specifications
4.7µF
± 20%
15000 hours @ 105°C
Radial Leaded
10mm
-
LLE Series
-40°C
-
400V
Radial Leaded
Polar
5mm
-
12.5mm
122mA
105°C
Technical Docs (1)
Alternatives for 400LLE4.7MEFC10X12.5
5 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
