SH2141-5541
Stepper Motor, Single Shaft, 14 mm, DC, 1.8 °, 0.0065 N-m, 300 mA

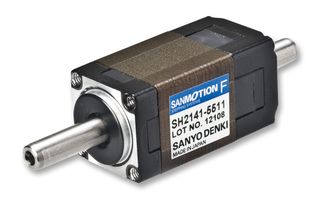

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SANYO DENKI |
|---|---|
| Manufacturer Part No | SH2141-5541Copy |
| Manufacturer Standard Lead Time | 42 weeks |
| Order Code | 2164432 |
| Product Range | SANMOTION F2 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.10,183.810 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.10,183.81
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SANYO DENKI |
|---|---|
| Manufacturer Part No | SH2141-5541Copy |
| Manufacturer Standard Lead Time | 42 weeks |
| Order Code | 2164432 |
| Product Range | SANMOTION F2 |
| Technical Datasheet | |
| Stepper Motor Type | Single Shaft |
| Motor Size | 14mm |
| Coil Type | DC |
| Step Angle | 1.8° |
| Torque Max | 0.0065N-m |
| Current Rating | 300mA |
| Voltage Rating Max | 24VDC |
| No. of Wires | 4 |
| External Length | 30mm |
| Shaft Diameter | 4mm |
| Product Range | SANMOTION F2 |
| Shaft Length | 13.5mm |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The SH2141-5541 is a Stepper Motor for a DC input set model with a basic step angle of 1.8°. The bipolar stepper motor suitable for use with industrial sewing machines, financial terminals, copiers and manufacturing equipment for semiconductors applications. It is a SANMOTION F2 is a 2-phase stepping system that provides precise positioning with easy control.
- Small driver and motor, yet high torque
- Fast response provides shorter system cycle time for repetitive operations
- Holding torque maintains the stop position when engaging power
- Low-vibration mode
- Accurate control is provided by pulse signals
- High torque motor
Applications
Industrial, Automation & Process Control, Motor Drive & Control
Technical Specifications
| Stepper Motor Type | Single Shaft |
|---|---|
| Coil Type | DC |
| Torque Max | 0.0065N-m |
| Voltage Rating Max | 24VDC |
| External Length | 30mm |
| Product Range | SANMOTION F2 |
| SVHC | No SVHC (17-Dec-2014) |
| Motor Size | 14mm |
|---|---|
| Step Angle | 1.8° |
| Current Rating | 300mA |
| No. of Wires | 4 |
| Shaft Diameter | 4mm |
| Shaft Length | 13.5mm |
