DZ5CE015
Wire Ferrule, Markable, Single Wire, 16 AWG, 1.5 mm², 8 mm, Black, DZ5

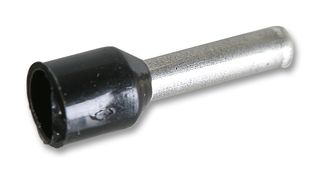

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Manufacturer Part No | DZ5CE015Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1207001 |
| Product Range | DZ5 |
| Your Part Number | |
| Technical Datasheet |
260 In Stock
5,000 more incoming. You can reserve stock now
260 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,914.120 |
| 10+ | Rs.1,875.840 |
| 25+ | Rs.1,837.560 |
| 100+ | Rs.1,799.280 |
| 250+ | Rs.1,761.000 |
| 500+ | Rs.1,722.710 |
Price for:Pack of 100
Minimum: 1
Multiple: 1
Rs.1,914.12
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Manufacturer Part No | DZ5CE015Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1207001 |
| Product Range | DZ5 |
| Technical Datasheet | |
| Wire Ferrule Type | Single Wire |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1.5mm² |
| Pin Length | 8mm |
| Insulator Colour | Black |
| Product Range | DZ5 |
| Overall Length | 14mm |
| Insulator Material | Plastic |
| Terminal Material | Copper |
| Terminal Plating | Tin |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
The DZ5CE015 from Schneider Electric is a single conductor insulated cable end connector. This cable end connector contains a tinned copper ferrule fitted with an insulated black sleeve. The copper ferrule holds the core strands of stranded wire and facilitates terminal connections. The insulated plastic sleeve provides protection between adjacent connections.
- Wire size is 16AWG / 1.5mm²
- Bezel size is 4mm diameter
- Tube diameter is 2.1mm
- UL approved
- Ambient air temperature for operation of -20°C to 105°C
Contents
Pack of 100 terminals.
Technical Specifications
| Wire Ferrule Type | Single Wire |
|---|---|
| Conductor Area CSA | 1.5mm² |
| Insulator Colour | Black |
| Overall Length | 14mm |
| Terminal Material | Copper |
| SVHC | No SVHC (10-Jun-2022) |
| Wire Size AWG Max | 16AWG |
|---|---|
| Pin Length | 8mm |
| Product Range | DZ5 |
| Insulator Material | Plastic |
| Terminal Plating | Tin |
Technical Docs (2)
Alternatives for DZ5CE015
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
