K10B011UCH
Rotary Switch, Cam, 2 Position, 1 Pole, 60 °, 10 A, 400 V, Harmony K Series

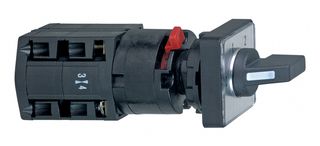

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoK10B011UCH
Order Code3108269
Product RangeHarmony K Series
Technical Datasheet
23 In Stock
Need more?
23 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.3,099.760 |
| 5+ | Rs.2,896.350 |
| 10+ | Rs.2,588.820 |
| 20+ | Rs.2,537.050 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.3,099.76
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoK10B011UCH
Order Code3108269
Product RangeHarmony K Series
Technical Datasheet
No. of Switch Positions2 Position
No. of Poles1 Pole
Angle of Throw60°
Contact Current AC Max10A
Contact Voltage AC Max400V
Product RangeHarmony K Series
IlluminationNon Illuminated
Contact Current DC Max10A
Contact Voltage DC Max24V
Product Overview
K10B011UCH is a cam changeover switch. It complies with standards like CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1. It is certified by CULus.
- 10A conventional free air thermal current, front mounting
- With front plate 30 x 30mm cam switch head, black handle operator
- 1-pole, left: 330°, right: 30° switching position
- Contact block: IP20, operating head: IP65 conforming to IEC 60529 (IP degree of protection)
- 440V (pollution degree 3) conforming to IEC 60947-1 rated insulation voltage
- 100000000 cycles mechanical durability, short-circuit protection, slow-break operation
- 4kV conforming to IEC 60947-1 rated impulse withstand voltage
- 1000000 cycles mechanical durability, 18 months warranty
- CAD overall dimension is 30 x 30 x 76mm (W x H x D)
- Ambient air temperature range from -20 to 55°C
Technical Specifications
No. of Switch Positions
2 Position
Angle of Throw
60°
Contact Voltage AC Max
400V
Illumination
Non Illuminated
Contact Voltage DC Max
24V
No. of Poles
1 Pole
Contact Current AC Max
10A
Product Range
Harmony K Series
Contact Current DC Max
10A
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Tariff No:85365090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
