| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Manufacturer Part No | XB4BS9445Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2614825 |
| Product Range | Harmony XB4 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.8,644.500 |
| 5+ | Rs.8,471.610 |
| 10+ | Rs.8,298.720 |
Product Information
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Manufacturer Part No | XB4BS9445Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2614825 |
| Product Range | Harmony XB4 Series |
| Technical Datasheet | |
| Contact Configuration | SPST-NO, SPST-NC |
| Switch Operation | Push-Key Release |
| Switch Terminals | Screw Clamp |
| Contact Current Max | 6A |
| Contact Voltage AC Nom | 120V |
| Contact Voltage DC Nom | - |
| Pushbutton Actuator Style | Mushroom |
| IP Rating | IP66 |
| Product Range | Harmony XB4 Series |
Product Overview

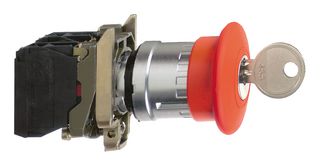

XB4BS9445 is a Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- Chromium plated metal bezel material and Zamak fixing collar material
- Round shape of signalling unit head
- Trigger action and mechanical latching type of operator
- Standard head type
- Ronis 455 type of keylock and centre key withdrawal position
- 1 NO + 1 NC contacts type and composition and slow-break contact operation
- Screw clamp terminals, <= 2 x 1.5mm² with cable end EN 60947-1
- Silver alloy (Ag/Ni) contacts material
- 44N operating force
- Mechanical durability of 300000 cycles
Technical Specifications
| Contact Configuration | SPST-NO, SPST-NC |
|---|---|
| Switch Terminals | Screw Clamp |
| Contact Voltage AC Nom | 120V |
| Pushbutton Actuator Style | Mushroom |
| Product Range | Harmony XB4 Series |
| Switch Operation | Push-Key Release |
|---|---|
| Contact Current Max | 6A |
| Contact Voltage DC Nom | - |
| IP Rating | IP66 |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .159 |
