20838-271
Panel, Hinged, 3U, 42HP, Aluminium, Subracks and 19" Cases, 128.4 mm, 213 mm
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,996.380 |
| 5+ | Rs.2,936.460 |
| 10+ | Rs.2,876.530 |
| 20+ | Rs.2,816.600 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,996.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNVENT SCHROFF
Manufacturer Part No20838-271
Order Code1455937
Technical Datasheet
Panel TypeFront Panel
Rack U Height3U
Panel MaterialAluminium
Body Colour-
For Use WithSubracks and 19" Cases
External Height - Metric128.4mm
External Width - Metric213mm
External Height - Imperial5.06"
External Width - Imperial8.39"
Product Range-
SVHCNo SVHC (15-Jun-2015)
Product Overview

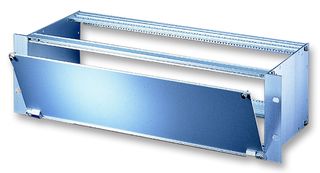

The 20838-271 is a bottom-hinged unshielded Front Panel made of aluminium with anodized surface finish and untreated edges. It is suitable for use with sub-racks (europacPRO) and cases (ratiopacPRO, propacPRO, compacPRO).
- Front panel can be unhinged at 135°
- Usable width is not restricted
- Mounts on the horizontal rails
Applications
Industrial
Technical Specifications
Panel Type
Front Panel
Panel Material
Aluminium
For Use With
Subracks and 19" Cases
External Width - Metric
213mm
External Width - Imperial
8.39"
SVHC
No SVHC (15-Jun-2015)
Rack U Height
3U
Body Colour
-
External Height - Metric
128.4mm
External Height - Imperial
5.06"
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:73269099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.275
